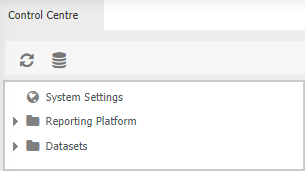

Control Centre / System Settings

The configuration manager for server connections, the creation and maintenance of datasets fields; layers, conditions etc.

Some may be easy to create as you can copy one that it already created and tweak it slightly to your preference. However, it is better for a Consultant to create these.

refresh screen.

create a dataset.

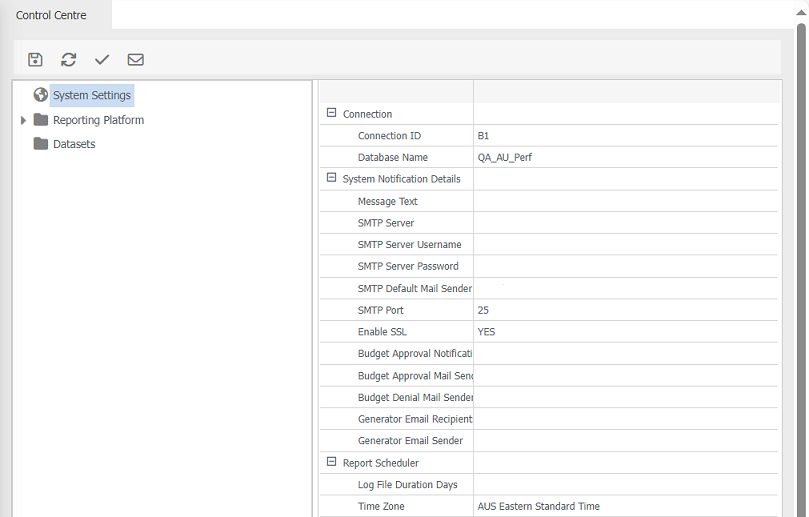

System Settings

Server connection details to MAGIQ Performance SQL Database.

save.

refresh screen.

Test Connection.

Test Email Server. Will only display if SMTP details are entered.

	Description
Connection
Connection ID	Always set to B1 as it points to the database settings.
Connection String	Enter the connection string for B1 that is constructed in the server console under configure.
Database Type	Select a valid database type for the database that B1 is pointing to.
System Notification Details
Message Text	Mesaage that exaplains to the user(s) why they are locked out of the system.
SMTP Server	Address of the outgoing mail server. For example mail.yourserver.com or 192.168.0.0
SMTP Server Username	Username of your outgoing mail server (if applicable).
SMTP Server Password	Password for the above username.
SMTP Default Mail Sender	Default sender email address which will be used for all email notifications, for exmaple, username@domainname.com
SMTP Port	Default port of mail server.
Enable SSL	Select either Yes or No if your mail server uses SSL.
Budget Approval Notification Timer Interval	Sets the timer interval for checking if popup notifications need to be displayed. The default is 5 minutes.
Budget Approval Mail Sender
Budget Denial Mail Sender
Generator Email Recipiants	Generator errors or alerts will be sent to this email address.
Generator Email Sender	Generator errors or alerts will be sent from email address.
Report Scheduler
Log File Duration Days	Set the number of days to keep log files.
Time Zone	Specify the correct timezone for generator files.
